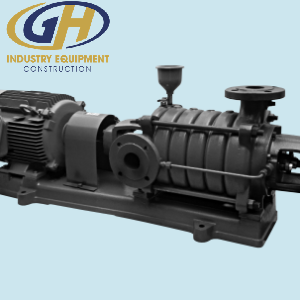

BƠM LY TÂM TRỤC NGANG M

BƠM LY TÂM TRỤC NGANG M

1. Applications
   • General water supply for buildings, condominiums, etc.

   • Circulation of cold/warm water

   • Conveyance of industrial water

   • Conveyance and distribution of tap water

   • Irrigation of paddies and fields

   • Water sprinkling

   • Other uses
2. Standard specifications


   Pumping liquid	Liquid quality	Fresh water
   	Liquid temperature	0～80˚C
   Total suction head (In case of 20°C)		−6m
   Allowable boost pressure		( 1.37MPa − Shutoff total head    )         or 0.29MPa,whichever is lower                                                      102
   Structure	Impeller	Closed
   	Shaft seal	Gland packing
   	Bearing	See the table below
   Material	Impeller	See the table below
   	Motor shaft	See the table below
   	Casing	FC200
   Motor	Efficiency	Top Runner efficiency (equivalent to IE3)
   	Starting method	Direct-on-Line start 7.5kW or less Star-delta start 11kW or more
   	Type	Totally enclosed fan-cooled indoor type
   	Power source	3-phase / 200V
   	Synchronous rotation speed	1500min-1
   Flange spec		See the table below
   Paint color		7.5BG5/1.5





   Nominal diameter d	Type	Output kW			Nominal diameter d	Type	Output kW
   40	M40-Ⅱ-1-e	1.5			80	M80-Ⅱ-1-e	3.7
   	M40-Ⅲ-1-e	1.5				M80-Ⅱ-2-e	5.5
   	M40-Ⅳ-1-e	2.2				M80-Ⅲ-1-e	5.5
   	M40-Ⅴ-1-e	2.2				M80-Ⅲ-2-e	7.5
   	M40-Ⅵ-1-e	3.7				M80-Ⅳ-1-e	7.5
   	M40-Ⅶ-1-e	3.7				M80-Ⅳ-2-e	11
   	M40-Ⅷ-1-e	3.7				M80-Ⅴ-2-e	11
   	M40-Ⅸ-1-e	5.5				M80-Ⅵ-2-e	15
   	M40-Ⅹ-1-e	5.5				M80-Ⅶ-2-e	15
   50	M50-Ⅱ-2-e	1.5				M80-Ⅶ-2-e	18.5
   	M50-Ⅲ-2-e	2.2				M80-Ⅷ-2-e	18.5
   	M50-Ⅳ-2-e	3.7			100	M100-Ⅱ-1-e	7.5
   	M50-Ⅴ-2-e	3.7				M100-Ⅱ-2-e	11
   	M50-Ⅵ-2-e	5.5				M100-Ⅲ-2-e	15
   	M50-Ⅶ-2-e	5.5				M100-Ⅳ-1-e	18.5
   	M50-Ⅷ-2-e	5.5				M100-Ⅳ-2-e	18.5
   	M50-Ⅷ-2-e	7.5				M100-Ⅳ-2-e	22
   	M50-Ⅸ-2-e	7.5				M100-Ⅴ-1-e	22
   	M50-Ⅹ-2-e	7.5				M100-Ⅴ-2-e	22
   65	M65-Ⅱ-1-e	2.2				M100-Ⅴ-2-e	30
   	M65-Ⅱ-2-e	3.7			125	M125-Ⅱ-1-e	15
   	M65-Ⅲ-2-e	3.7				M125-Ⅱ-2-e	18.5
   	M65-Ⅳ-2-e	5.5				M125-Ⅲ-1-e	22
   	M65-Ⅴ-2-e	7.5				M125-Ⅲ-2-e	30
   	M65-Ⅵ-2-e	7.5				M125-Ⅳ-1-e	30
   	M65-Ⅶ-2-e	11				M125-Ⅳ-2-e	37
   	M65-Ⅷ-2-e	11			150	M150-Ⅱ-1-e	30
   	M65-Ⅸ-2-e	11				M150-Ⅱ-2-e	37
   	M65-Ⅸ-2-e	15				M150-Ⅲ-1-e	45
   						M150-Ⅲ-2-e	55
