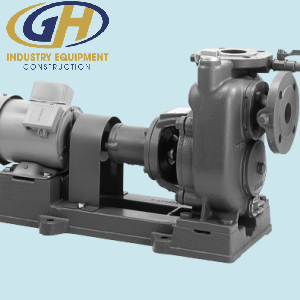

BƠM TỰ MỒI SP3 SP
- Applications
- General water supply and drainage
- Distribution for industrial water
- Civil engineering work use/agricultural use
- Water pumping and drainage for food/chemical/mining industries
- Standard specifications
Liquid to be lifted Liquid quality…tap water/sewage Liquid temperature…0 to 40 °C Total suction head ( (20 °C) SPL3-32, 40…-5m SPL3-50/SPM3-40/50 SPH3-40/50…-7m SPL3-65 or more…-6m Structure Impeller…Semi-open Bearing…Gland packing Shaft seal…Sealed ball bearing Material Impeller…FC200 Spindle…SUS403 Casing…FC200 Motor Type… Single-phase Open-phase protection type Three-phase Totally-enclosed-fan-cooled motor indoor type Power… Single-phase/100V (0.4kW or less) Synchronous rotation speed…1500min-1 Flange standard JIS 10K flange Coating color 7.5BG5/1.5 Specifications
Single-phase
Nominal diameter mm Model Output kW Specification Discharge rate m3/min Total head m Discharge rate m3/min Total head m Discharge rate m3/min Total head m 32 SPL3-32 0.2 0.05 4.5 0.07 4 0.1 3.5 40 SPL3-40 0.4 0.08 6 0.12 5 0.15 4.5 Three-phase
Nominal diameter mm Model
Output kW Specification Discharge rate m3/min Total head m Discharge rate m3/min Total head m Discharge rate m3/min Total head m 32 SPL3-32 0.2 0.05 4.5 0.07 4 0.1 3.5 40
SPL3-40 0.4 0.08 6 0.12 5 0.15 4.5 SPM3-40 0.75 0.08 8.5 0.14 7.5 0.18 6.5 SPH3-40 0.75 0.08 13 0.15 11.5 0.2 9.5 50
SPL3-50 0.75 0.15 7 0.2 6.5 0.25 6 SPM3-50 0.75 0.15 9.5 0.2 8.5 0.28 7 SPH3-50 1.5 0.15 15 0.24 13.5 0.3 11.5 65
SPL3-65 0.75 0.25 7.5 0.35 6.5 0.45 5.5 SPM3-65 1.5 0.25 11 0.35 9.5 0.45 8 SPH3-65 2.2 0.25 19 0.35 18 0.45 16 80
SPL3-80 1.5 0.45 8.5 0.6 7.5 0.75 6 SPM3-80 2.2 0.45 12.5 0.6 11 0.75 9.5 SPH3-80 3.7 0.45 20 0.6 18 0.75 15 100
SPL3-100 2.2 0.75 10 1.0 8 1.2 6.5 SPM3-100 3.7 0.75 14 1.0 12 1.2 10 SPH3-100 7.5 0.75 22 1.0 20 1.2 18 125 SPL3-125 5.5 1.2 12 1.5 10 1.8 8 SPM3-125 7.5 1.2 16 1.5 14 1.8 12 150 SPL-150 7.5 1.8 11.5 2.3 10 2.tumoiSP3SP
