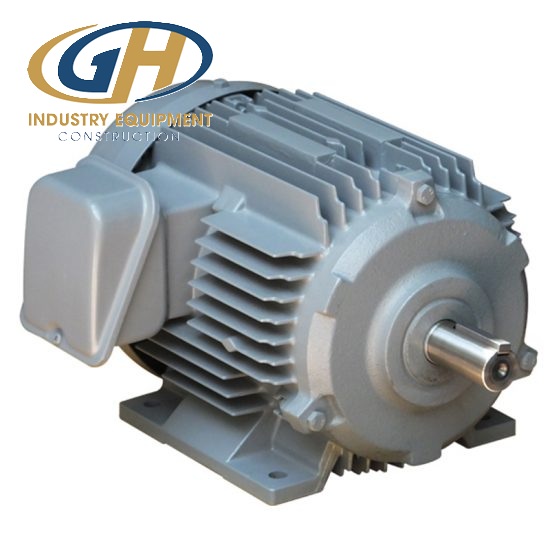

Động cơ Hitachi Chân đế 3 phase
| Item | Specifications | ||||
| Standard | JEC-2137-2000, JIS C 4210, 4034, etc. | ||||
| Rating | Continuous [S1] | ||||
| Insulation Class | 2, 4, 6 Pole (8 Pole for same range) | ||||
| B Type | ~180 M | ||||
| F Type | 180 L~ | ||||
| Enclosures Type | Enclosures | Type | Protection | ||
| Indoor | Fan cooled type
Vertical Fan cooled type |
TFO-K, KK VTFO-K, KK | IP44 | ||
| Outdoor | Fan cooled type
Vertical Fan cooled type |
TFO-K, KK VTFO-K, KK | IP55 | ||
| Voltage, Frequency | 1/2 ~ 5 HP: 220/380V 50Hz
7.5HP ~ :389/415V 50Hz |
||||
| Number of Cable | ~ 5 HP 6 Wires (Direct staring 220V or 380V) | ||||
| 7.5 HP ~ 6 Wires (Star λ-Δ Delta statring) | |||||
| 2 pole 30 HP~
4 pole HP ~ 6 pole 50 HP~ |
12 Wires
(Star λ-Δ Delta statring) |
||||
| Color | Alcron gray | ||||
| Transmisson | 2 pole 15 HP ~ Direct coupling 2 pole ~ 10 HP and 4 pole ~ Direct coulping or Belt drive | ||||
| Ratation | CCW(View from motor drive end) | ||||
| Environment | Temperature | -30 ~ 40°C | |||
| Humidity | Enclosed type Max 95% RH | ||||
| Altitude | Max 1,000 m | ||||
| Establishment | [IP44] Indoor type, [IP44 Special, IP55] Outdoor type | ||||
| Atmosphere | No corrosive gas, No explosive gas
No Steam, No dew, little dust |
||||
